Mahle OE

41865CP.020

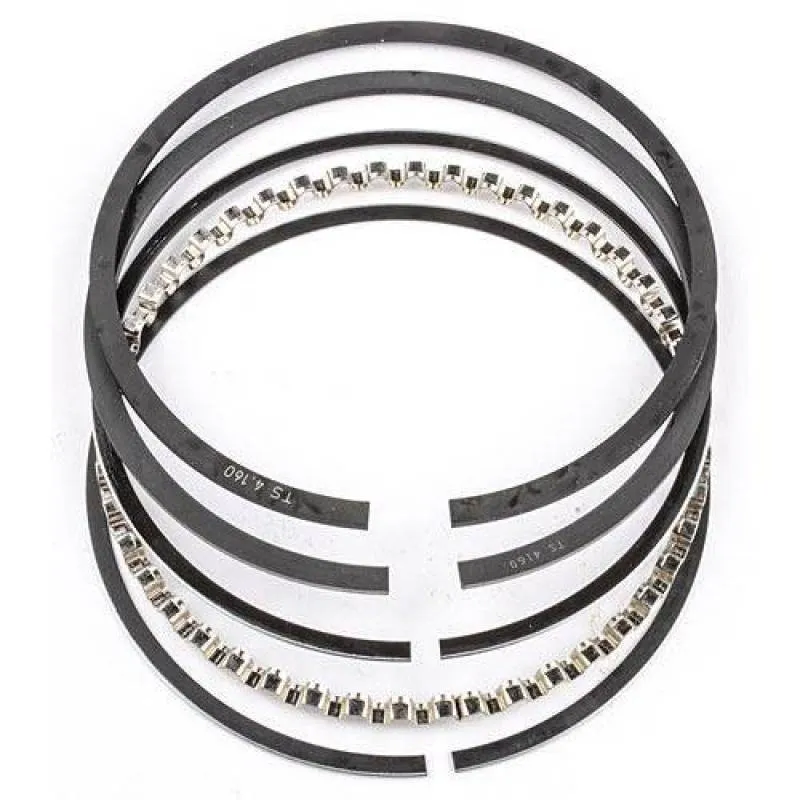

Piston Rings

MAHLE Original piston rings are the most technically advanced piston rings in the industry. Driven by OE requirements; reducing friction and ring mass while minimizing engine oil consumption, and providing longer service life. MAHLE Original piston rings lead the industry for the latest piston ring technology.

Mahle Original piston ring sets are designed to be installer-friendly. They are pre-lapped to seat immediately, virtually eliminating break-in time. Ring materials and coatings, as well as ring tension, are all optimized for reduced friction and extended life in each application. The compression rings feature a barrel-faced contact area for more efficient compression and CNC-controlled gap chamfer to optimize compression and reduce blow-by. Intermediate rings have a reverse twist design for better groove side sealing, and taper race machining to enhance contact. The CP-20 oil ring assemblies feature a 20 degree ear angle, an exclusive feature that provides the best possible side seal against the cylinder wall, and a special chemical polish on the oil ring expander offers enhanced oil drain back. Mahle Original piston ring sets provide unmatched quality and ease of installation, making them the rings of choice for today's engine builders.
